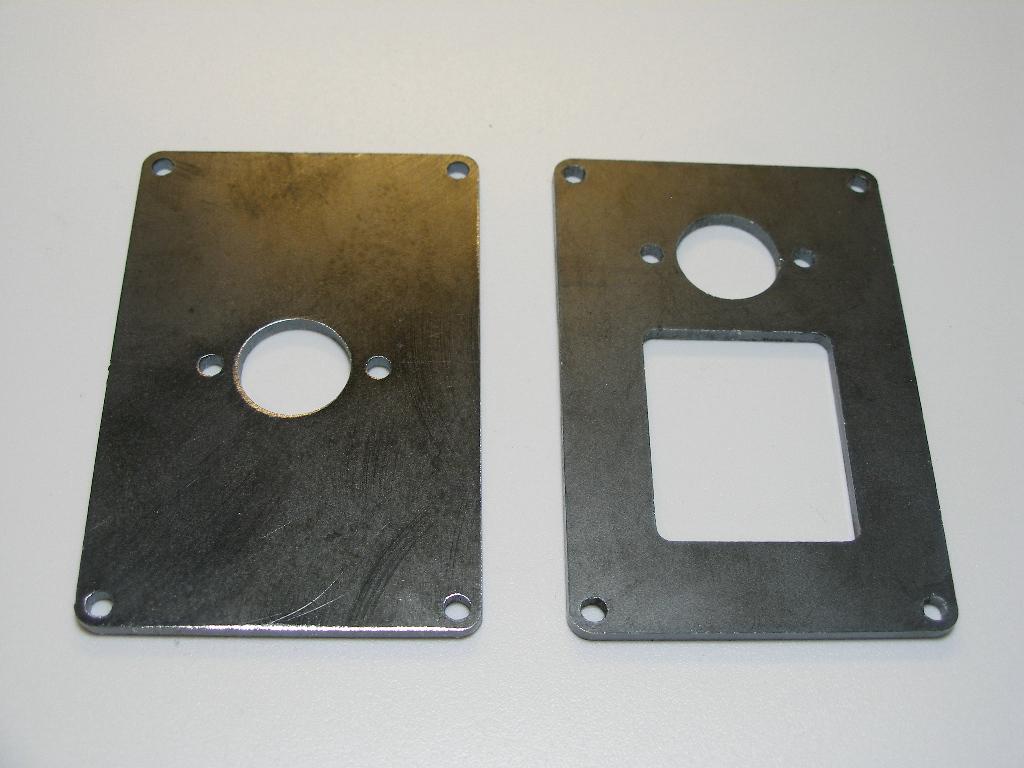

12 Ga HRS steel mounting plates for cabinet I/O snap-in IEC 320-C14 and/or DIN panel mount components
Both panels measure 2" X 3"
Mounting screws located in corners:
Qty 4 X 0.125" (1/8") diameter mounting holes.
Mounting hole spacing= 2.75" C-C lengthwise and 1.75" C-C width-wise.
DMNT has holes for mounting a standard panel-mount DIN connector.
ACMT has holes for mounting DIN connector and snap-in IEC 320-C14 AC power entry.
