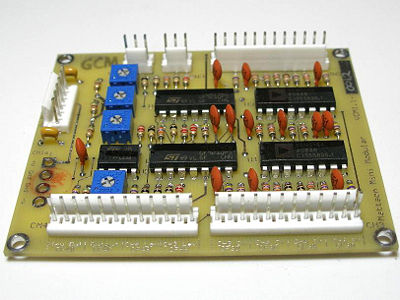

Voltage-Controlled Mixer Board

The voltage controlled version of the 4 channel mixer with 0-5VDC control voltage inputs in place of the on/off switches. The CV inputs are cascaded from channel 1 to channel 4 to allow for one CV to control all four channels if desired. Another CV patched into another channel will interrupt the previously cascaded signal to that channel and will control all subsequent channels. An internal 5VDC bias is "normalled" to the CV inputs to allow the module to be used as a manual mixer if no CV inputs are patched into the "Control in" input. Trim adjustments are available on the board to allow the user to set each channels' gain structure to suit their needs. The factory calibration is 1:1 input signal to output signal. Much higher channel gain can be set by the customer.

Requires wire kit WK-14B if desired.

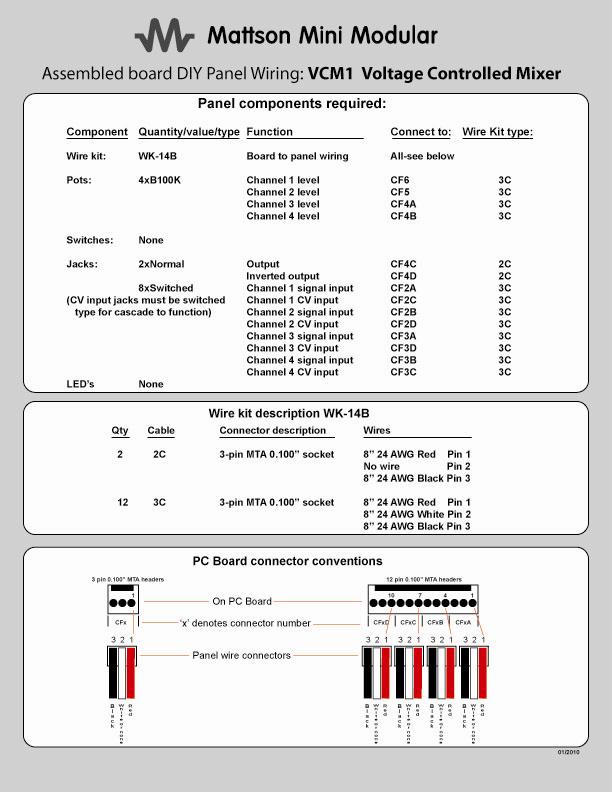

Wiring information:

VCM1 module panel wiring.jpg

Click for Adobe PDF version.

Availability

This module is available

$105.00

To order, visit the MMM Store
